Quickstart for the dbt Cloud Visual Editor

Updated
Visual Editor
Analyist
dbt Cloud
model
Beginner
Menu

    Introduction​

    beta feature

    The Visual Editor is currently in a limited beta. Contact us if you're interested in becoming a part of it. Features currently in the beta are subject to change or removal.

    The dbt Cloud Visual Editor offers a quick and simple way for anyone to build models for analytics, no background in analytics engineering required! In this guide, you will learn about:

    • Accessing the Visual Editor and creating a new model
    • How to navigate the interface
    • How to build a model using operators
    • How to commit your changes to Git
    • Locating your Visual Editor model and data

    Prerequisites​

    To use the Visual Editor, you must meet the following prerequisites:

    • Your account must have the following configured:
      • A data warehouse connection
      • Integration with a Git provider
    • Source models for the Visual Editor must have been run at least once
    • You must have a developer license
    • You must have credentials configured for your data warehouse and Git provider in the Your profile section of the Account settings.
    note

    The examples in this guide use the Jaffle Shop GitHub repo sample project. You can use your own data, but the Jaffle Shop offers a full-featured project that's useful for testing dbt features. Ask your dbt Cloud administrator about importing it to a project in your environment. They must also execute dbt run on the Jaffle Shop project before you begin, or you will not be able to reference the source models.

    Access the Visual Editor​

    To access the Visual Editor:

    1. From the main menu, click Develop. If you do not see the Develop option, ensure you have selected a Project from the menu.
    2. Click Visual Editor.

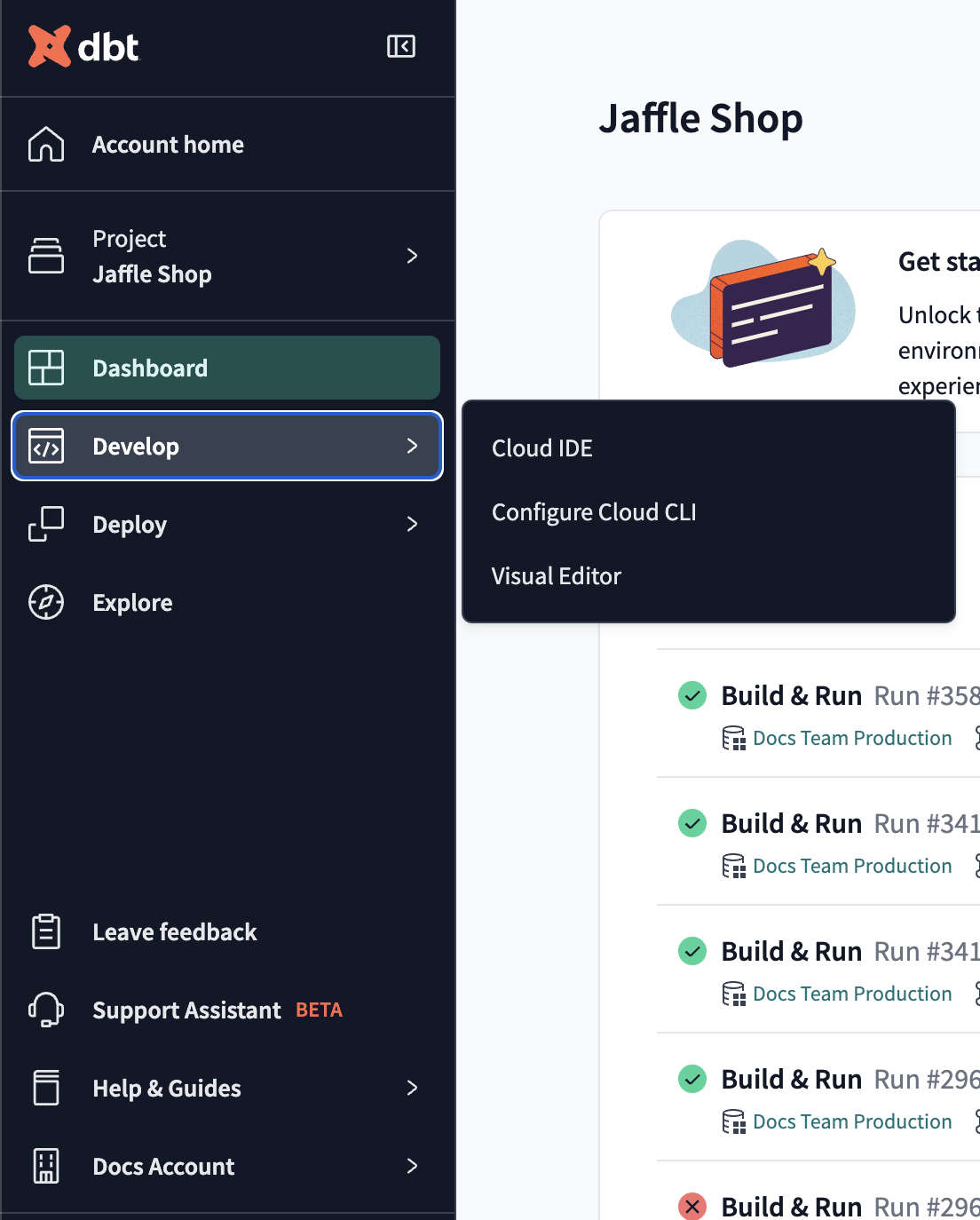

    Visual Editor in the main menu.Visual Editor in the main menu.
    1. From the right side, click Get started and then click Create new model.

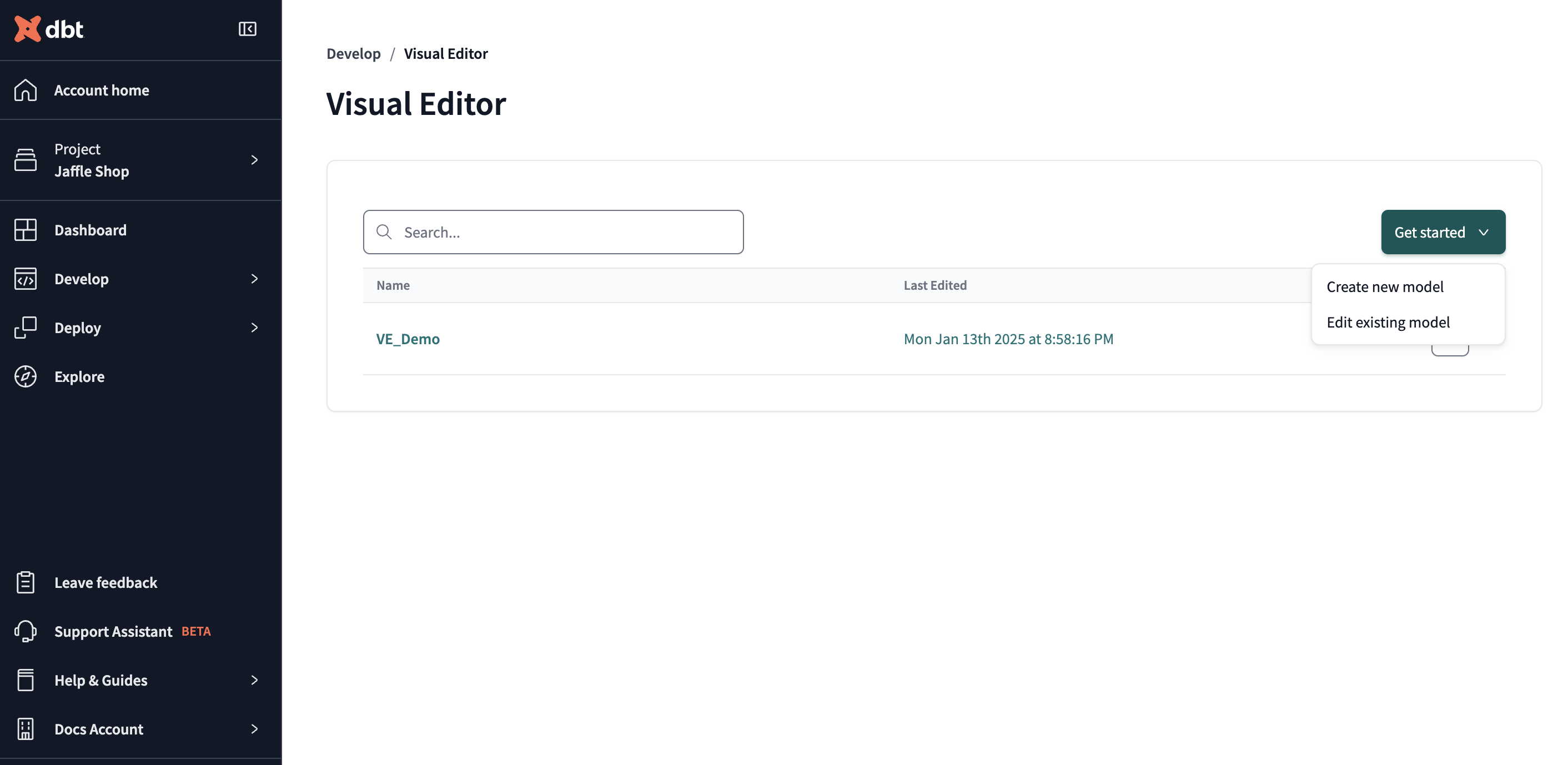

    Create a new model from the Visual Editor landing page.Create a new model from the Visual Editor landing page.

    The Visual editor is comprised of a series of menus activated by clicking icons that surround the border of the larger canvas. With none of the menu items activated, the workspace looks like this:

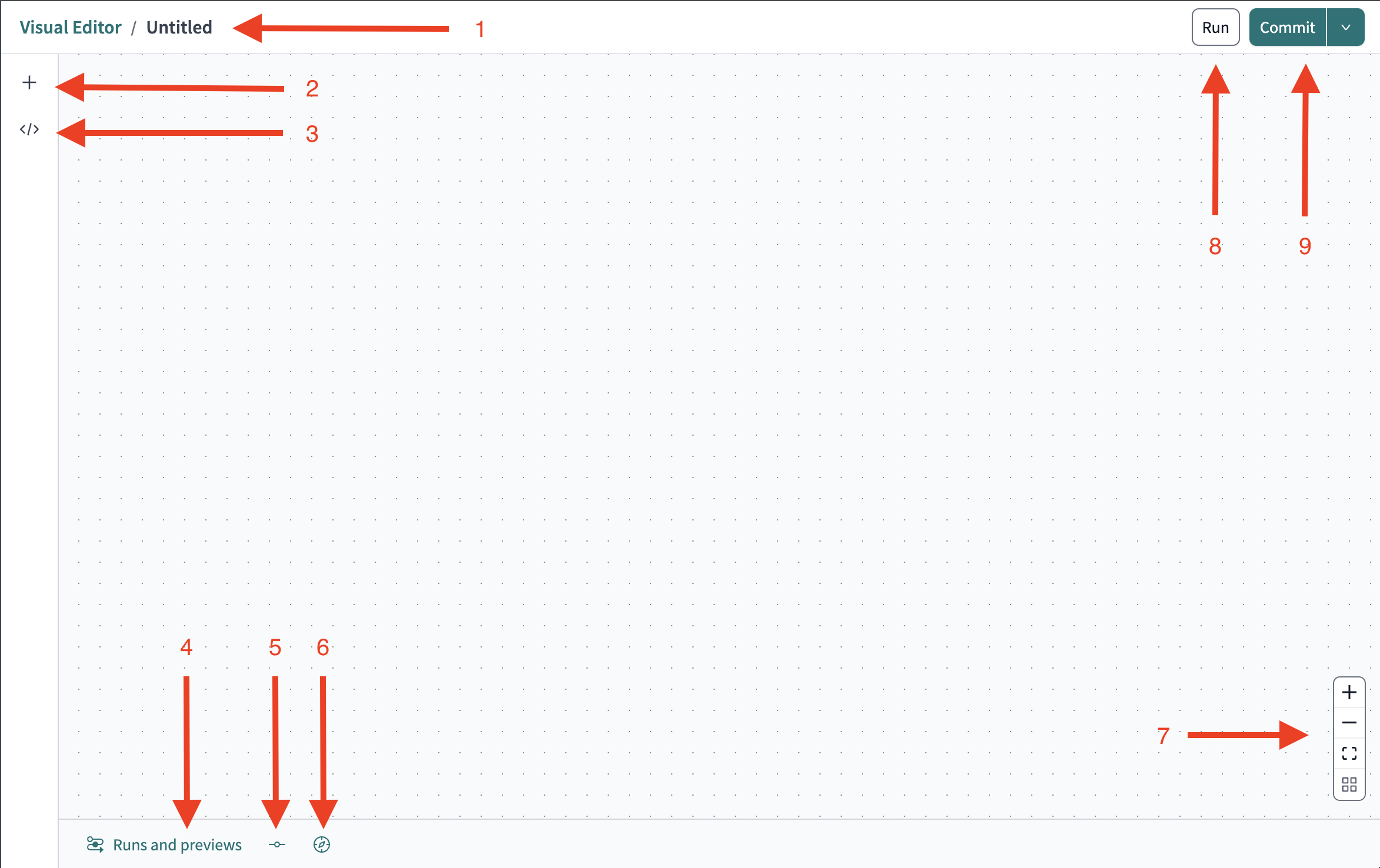

    The Visual Editor canvas. The number items are defined in this section.The Visual Editor canvas. The number items are defined in this section.

    Click on an icon to expand it's section or execute an action depending on it's purpose. The options are as follows:

    1. The model's title. This defaults to "Untitled" but can be edited at any time by clicking on it.
    2. The Operators menu that contains the building blocks of creating a model with the editor.
    3. The SQL code area that displays the SQL that compiles your model.
    4. The Runs and previews that displays run data and previews data for individual operators.
    5. The Commit history display.
    6. The Explorer view of your model.
    7. The navigation tab that has icons for (from top to bottom):
      • Zoom in
      • Zoom out
      • Center the model to fit to screen
      • Auto-layout option for the individual operator tiles
    8. The Run command executes dbt run for the model.
    9. This button is initially, a Commit command for your integrated Git provider. Changes to "Open pull request" once changes are committed. This will not appear until a change is made that would require a commit.

    Create a model​

    This section will walk you through creating a model with operators using sample data from the Jaffle Shop project. With this guide, you will create a basic model that transforms two datasets to build a view repeat customer purchases while you consider a loyalty program for your shop.

    The operators are the heart of your model. They determine what data will be transformed and how. Click the + icon to open the operator menu.

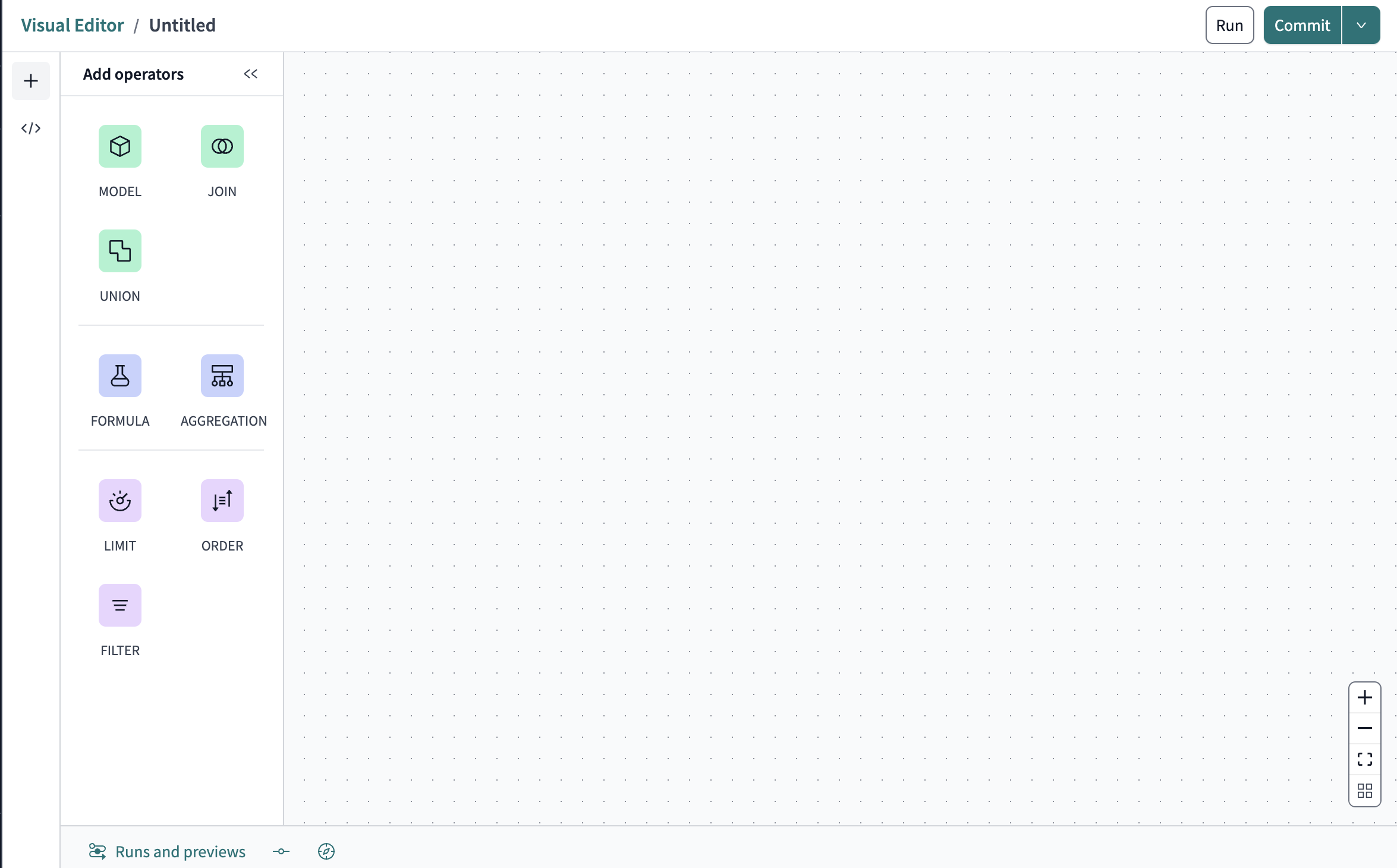

    The operators menu on the side of the Visual Editor canvas.The operators menu on the side of the Visual Editor canvas.

    Read more about the individual operators to understand the basic purpose of each. Keep in mind that the model you're creating relies on existing models, and that the term will mostly be used to reference the model operator in this section.

    Operator tiles​

    The operators are drag-and-drop from their menu to the canvas and each of them will create a tile when dropped.

    The tiles have the same basic setup with different fields depending on their function. All of the operators except for Model require they be connected to another tile before they can be configured. Once configured, they' have the same basic layout.

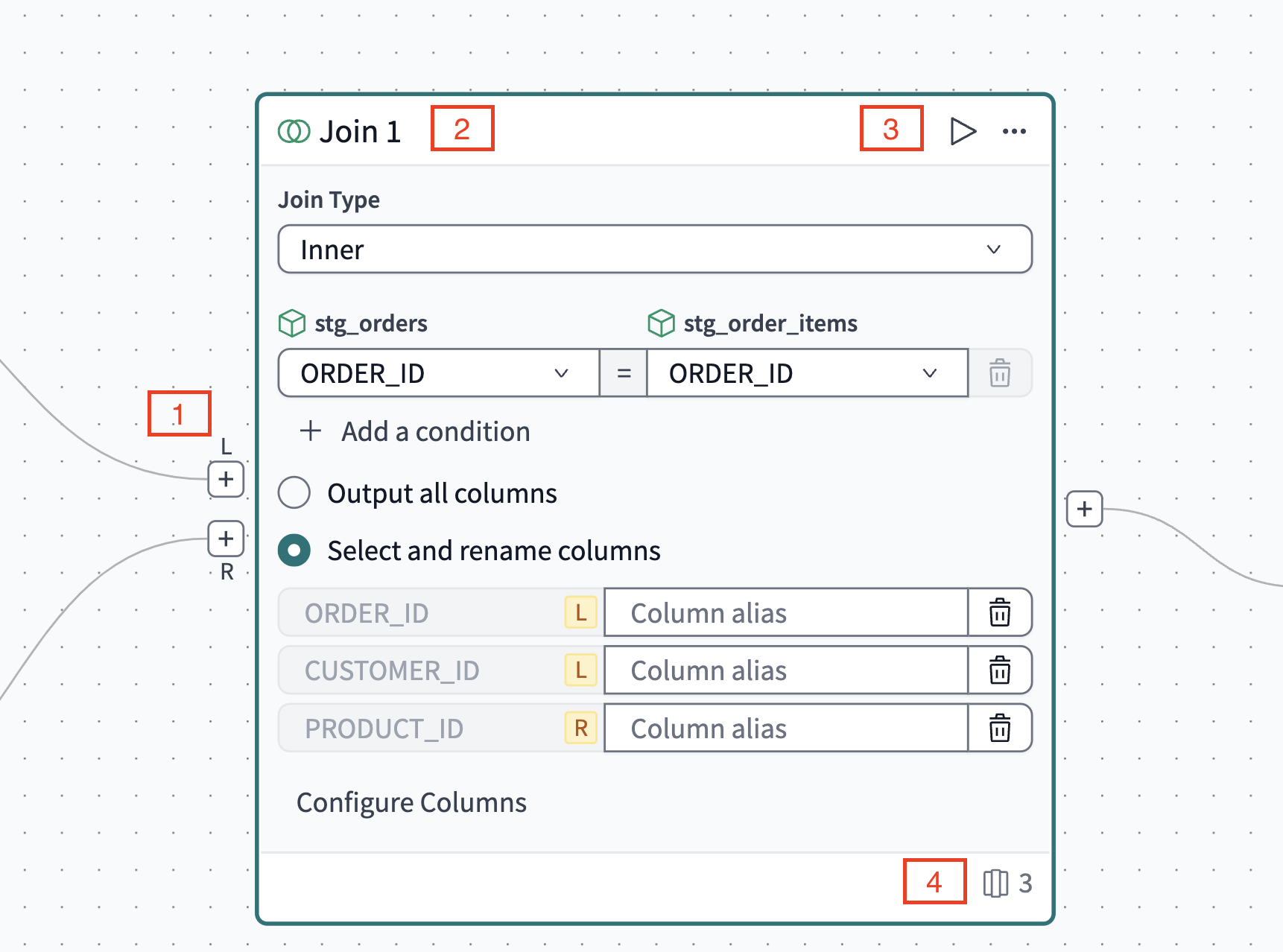

    An operator tile with configurations filled out.An operator tile with configurations filled out.
    1. The connectors: Click-and-drag to the connector on another operator to link them.
    2. The title: Click to change. The examples in this guide will remain default.
    3. Play icon and menu: Preview the data at any point in it's transofrmation by clicking the tiles play icon. The dropdown menu contains the optiont to Delete a tile.
    4. Column icon: The number next to it represents the number of columns in the data at that point in it's transformation.
    tip

    Make operator tile titles unique compared to your column names to avoid confusion. Same for any aliases you create.

    Create your source models​

    To get started:

    1. Expand the Operators menu and drag the Model operator over to the canvas.
    2. Click Configure model and then select the source stg_models from the dropdown.
    3. Click the Output all columns option.

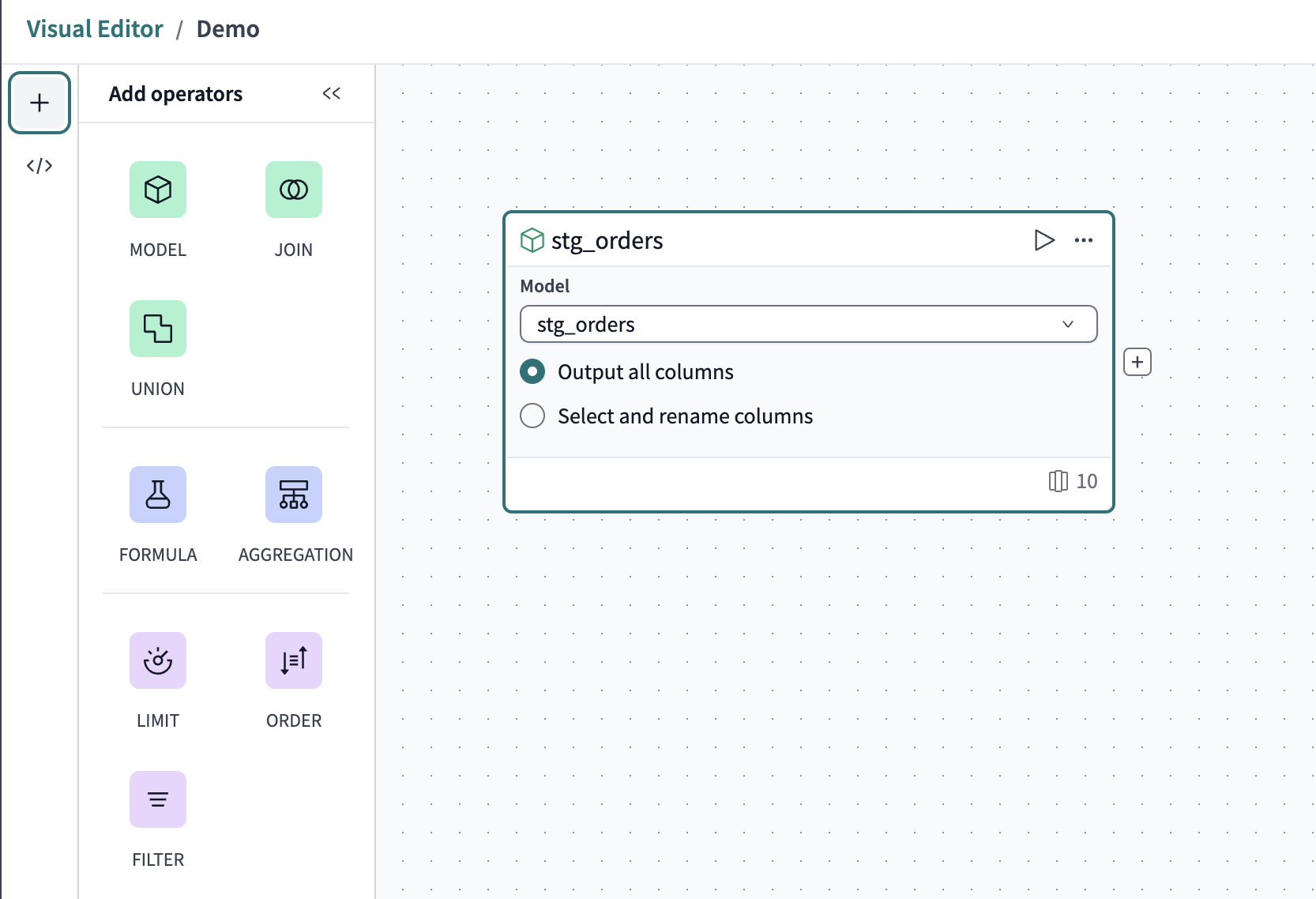

    A single model operator.A single model operator.

    You now have your first data source!

    1. Drag a new Model operator to the canvas below the first and repeat the previous steps, but this time set the source model to stg_order_items.

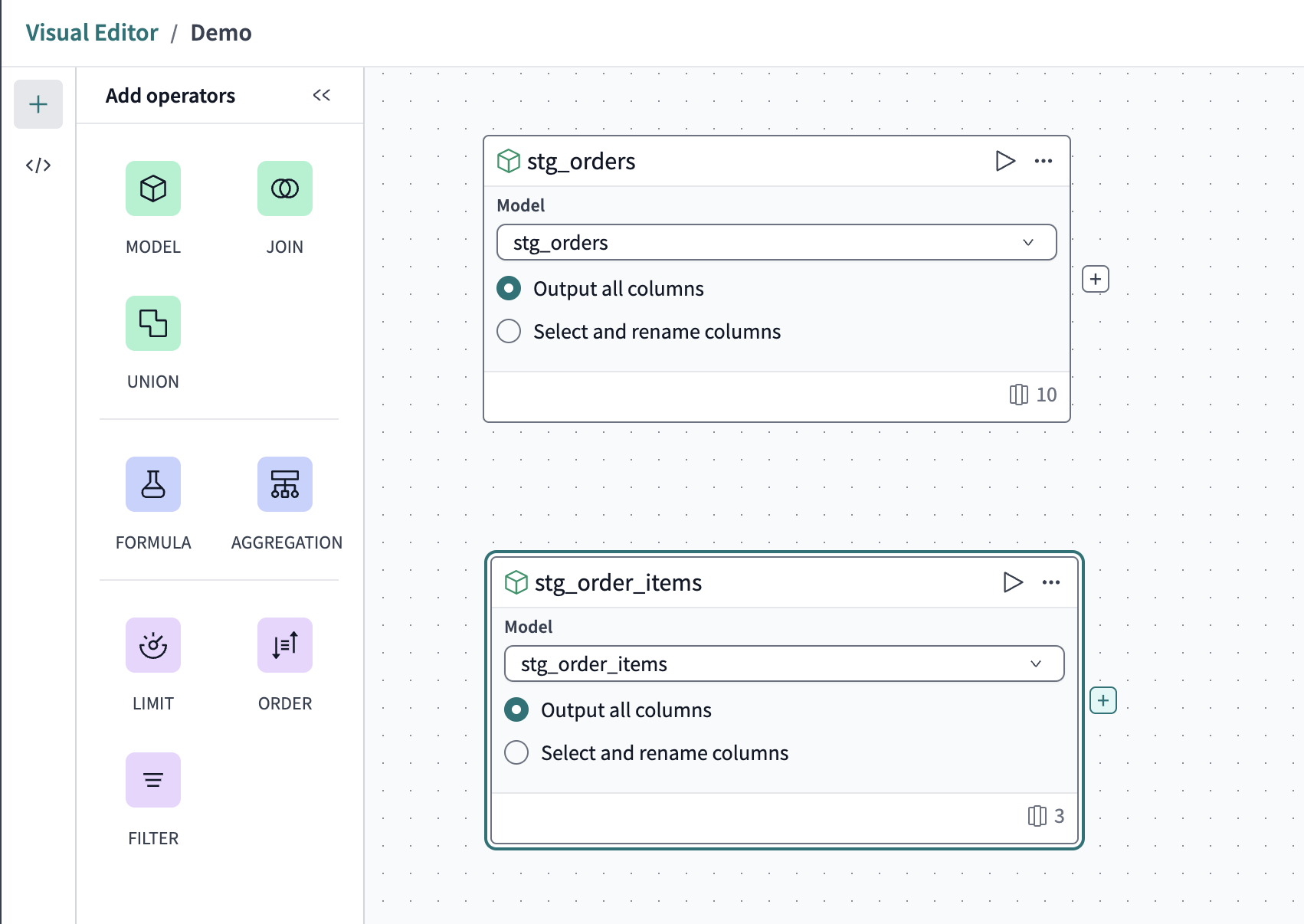

      Two model operators in te canvas.Two model operators in te canvas.

    Now you have two source data models and are ready to start transforming the data!

    tip

    Don't see a source model you're looking for? Ask your dbt admins to ensure it's been recently run and that it hasn't gone stale.

    Create a join​

    1. From the Operators menu, drag the Join operator on to the canvas to the right of the source models.

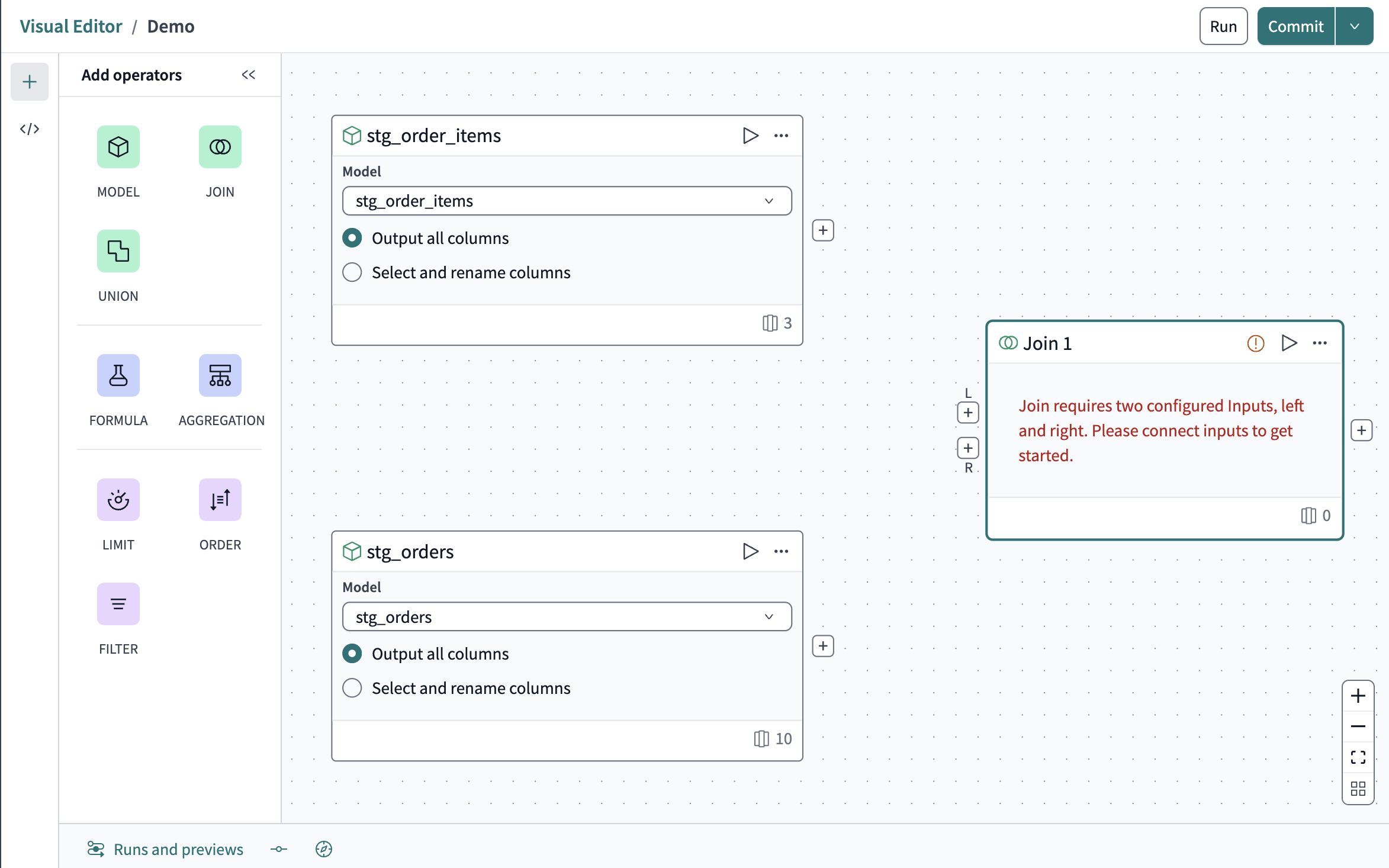

      A join that has not been connected to the modelsA join that has not been connected to the models

    2. Click-and-drag a line from the + connector below the L on the join border to the + on the stg_orders model. Do the same for the R connector to the stg_order_items model.

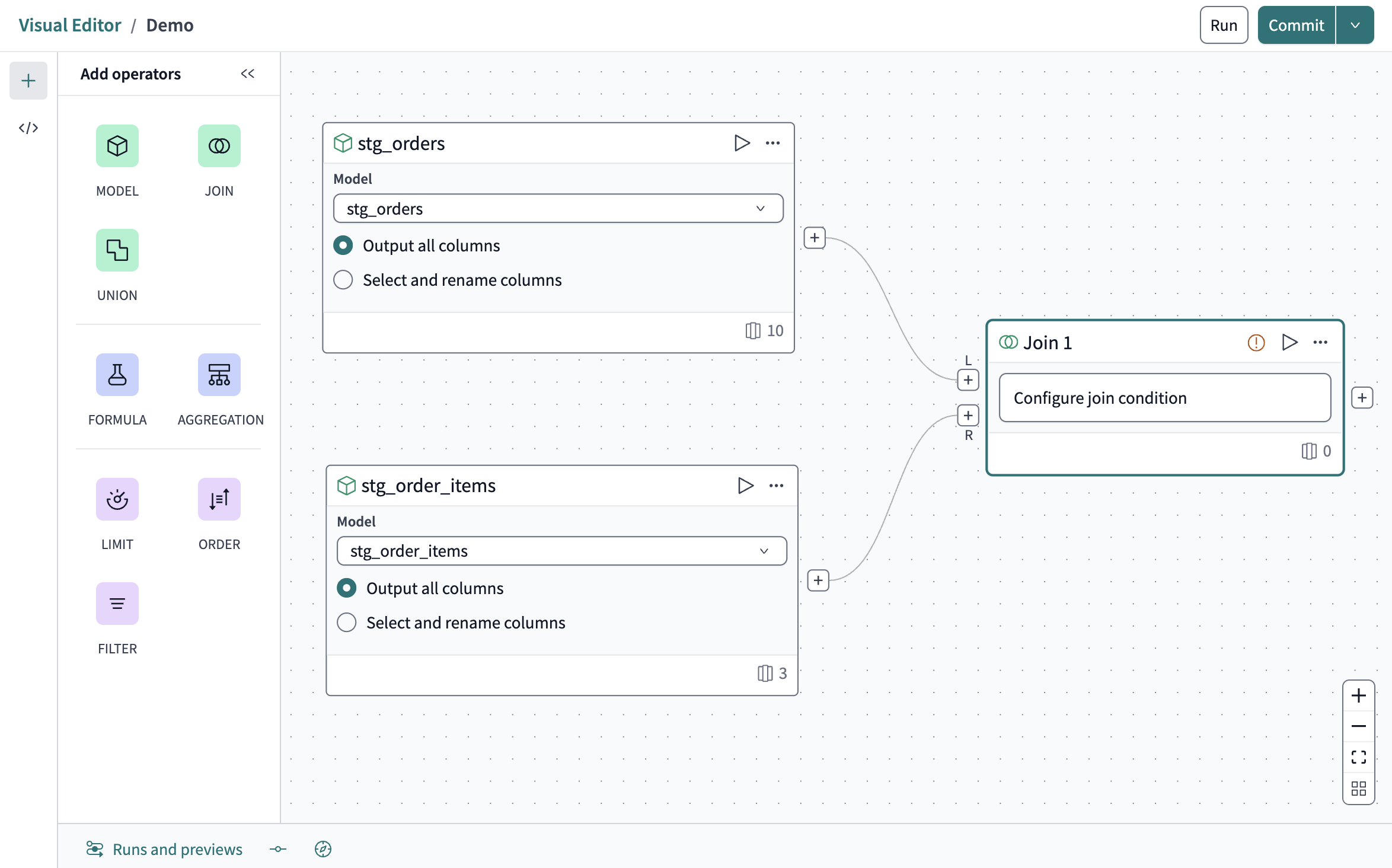

      The join is connected to two model operators.The join is connected to two model operators.

    3. In the Join tile, click Configure join condition.

    4. Set the Join type to Inner.

    5. In the pair of dropdowns, set both stg_orders and stg_order_items to ORDER_ID.

    6. Click Select and rename columns and click Configure columns select the following columns:

      • From stg_orders click ORDER_ID and CUSTOMER_ID.
      • From stg_order click PRODUCT_ID.
      • Note: These will appear in the order they are clicked.

    7. You've now built your join! Test it by clicking the Play icon in the top right corner of the join tile. Your data will populate in the Runs and previews pane.

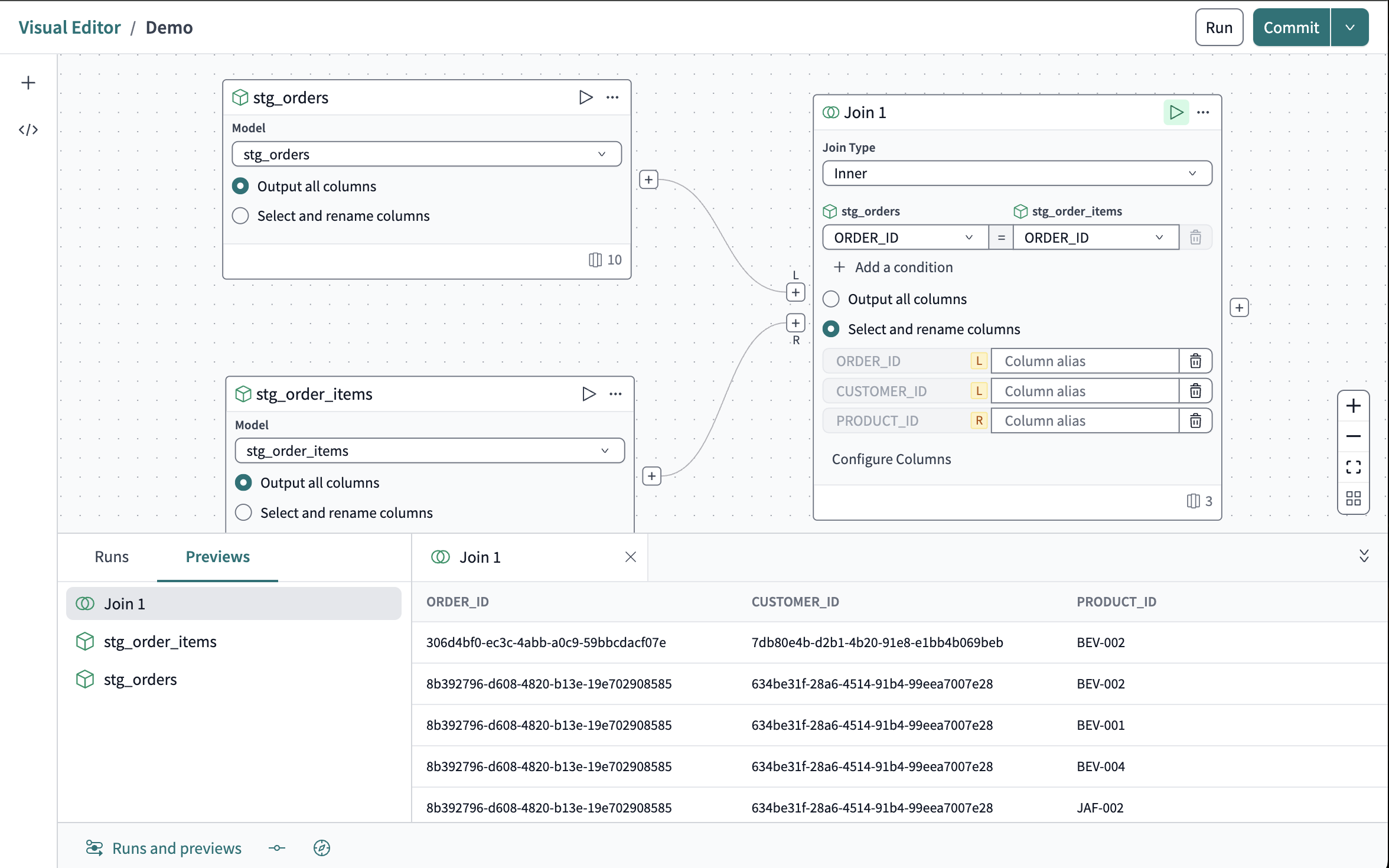

      A completed join with the sample data.A completed join with the sample data.
    tip

    Your work in the Visual Editor is automatically saved as you progress, so if you need a break, you can always come back to a session later. Just be sure to give it a unique title!

    Enhance your model​

    You've got the basics going with your Visual Editor model! It has succesfully joined two source models, but you need to futher transform the data to get what you need. A list of customers who buy a lot of repeat items as you consider a loyalty club rewards program.

    Aggregate data​

    There are multiple options for transforming your data including custom formulas, filters, and unions. Keep it simple for no and add an aggregation operator to tell you which of your customers are buying the most repeat products.

    1. Drag the Aggregation operator over to the right of the join.

    2. Connect the aggregation operator to the join operator.

    3. Click Configure aggregation in the Aggregation tile.

    4. Click in the Group by field and first select CUSTOMER_ID then PRODUCT_ID.

    5. Configure the next three fields with the following:

      • Function: Count
      • Column: PRODUCT_ID
      • Alias: count_PRODUCT_ID

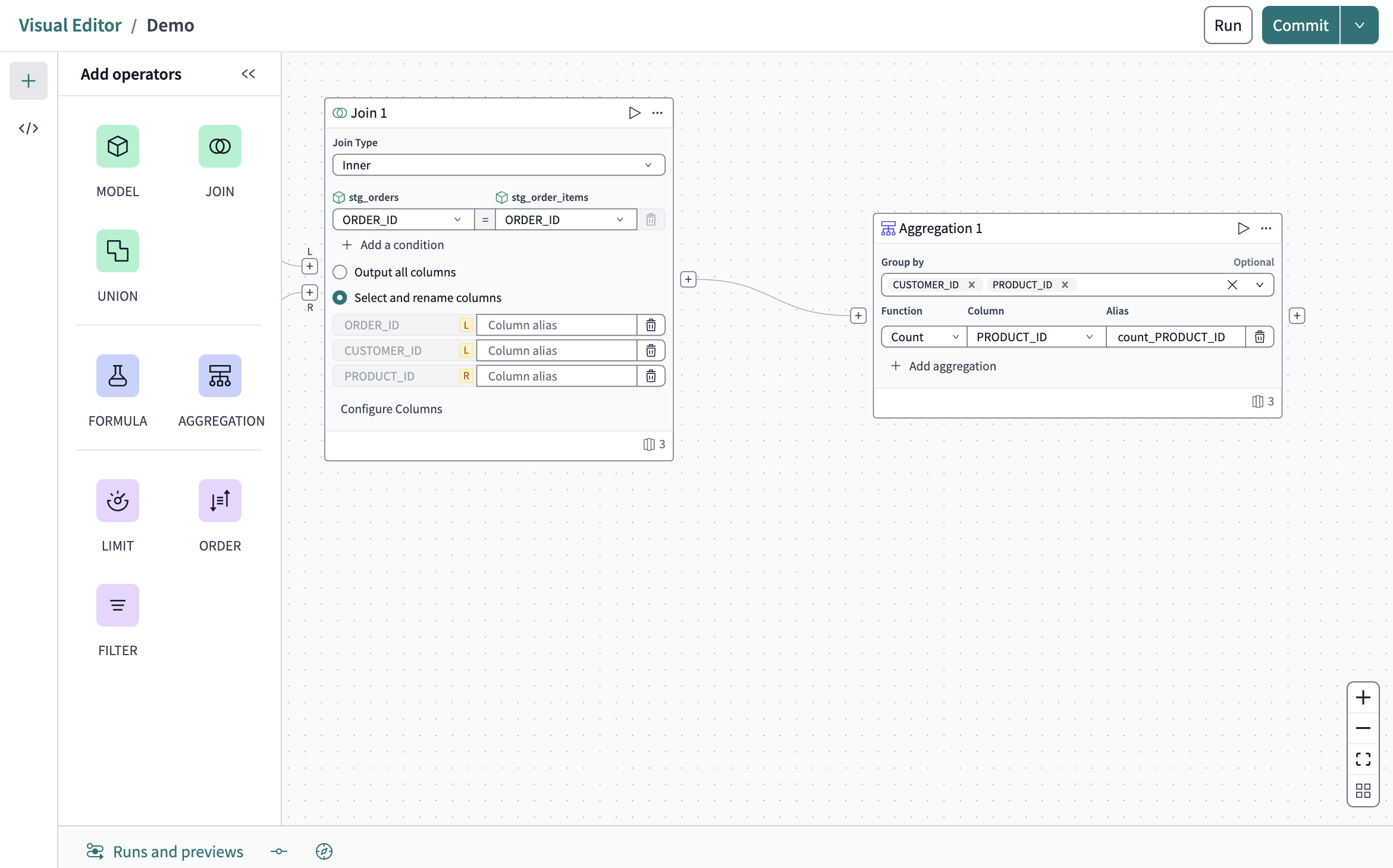

      The configured aggregation operator tile.The configured aggregation operator tile.

    6. Press the Play icon and preview the data. You're starting to see the results you're looking for, but the data is scattered. Let's clean it up a bit further.

    tip

    As your model growns, you can zoom in and out to view what you need. Click and hold in empty canvas space to drag your setup across the screen. Click the Fit view icon to see your entire model on the screen. Click the Auto layout icon to auto arrange the tiles efficiently.

    Add some order​

    There's a lot of data there. Dozens of customers buying hundreds of products. You're going to sort it so the customers are listed ascending by CUSTOMER_ID number with the products they've bought the most listed in descending order.

    1. Drag the Order operator over to the right of the Aggregation tile and connec them.

    2. Click Configure order.

    3. In the Sort order field click Select column and click Aggregation1.CUSTOMER_ID from the dropdown. Set it to Asc.

    4. Click Add sorting and in the new Select column field select Aggregation1.count_PRODUCT_ID. Set it to Desc.

    5. Press the Play icon to preview the new data.

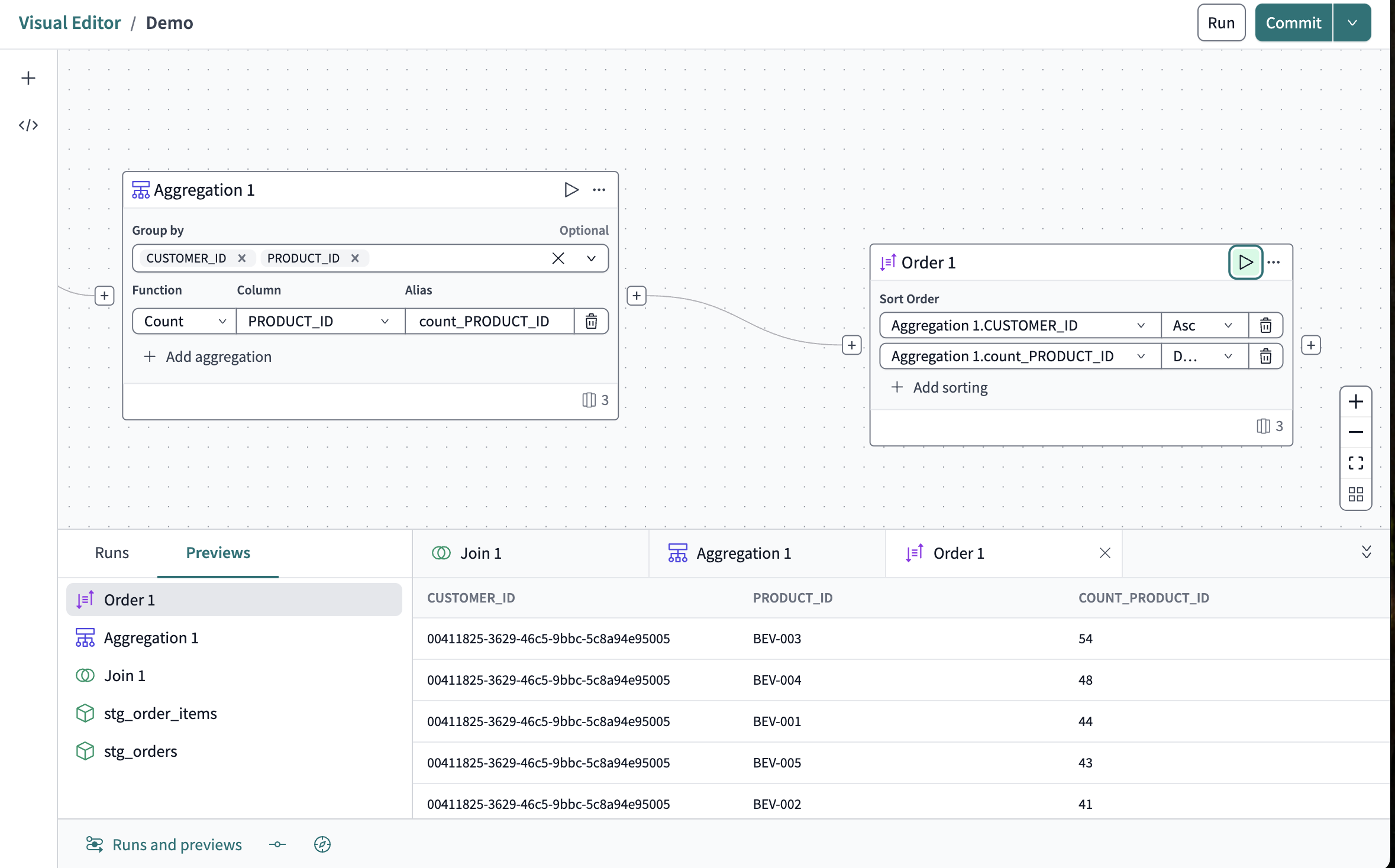

      The ordered data operator tile config and data preview.The ordered data operator tile config and data preview.
    tip

    Want to practice on your own? Try adding a Filter operator that removes any items with less than 10 sales for any given customer ID. Be sure to run the preview and verify the data is correct.

    Run and share your model​

    Now that you've built a model that results in the data you want, it's time to run it and push it to your Git repo.

    Run​

    To run your model, all you need to do is click the big Run button. With the Visual Editor, there is no command line and no need to memorize a list of commands, there is only Run. Click it and you will see the results populate in the Runs and previews pane.

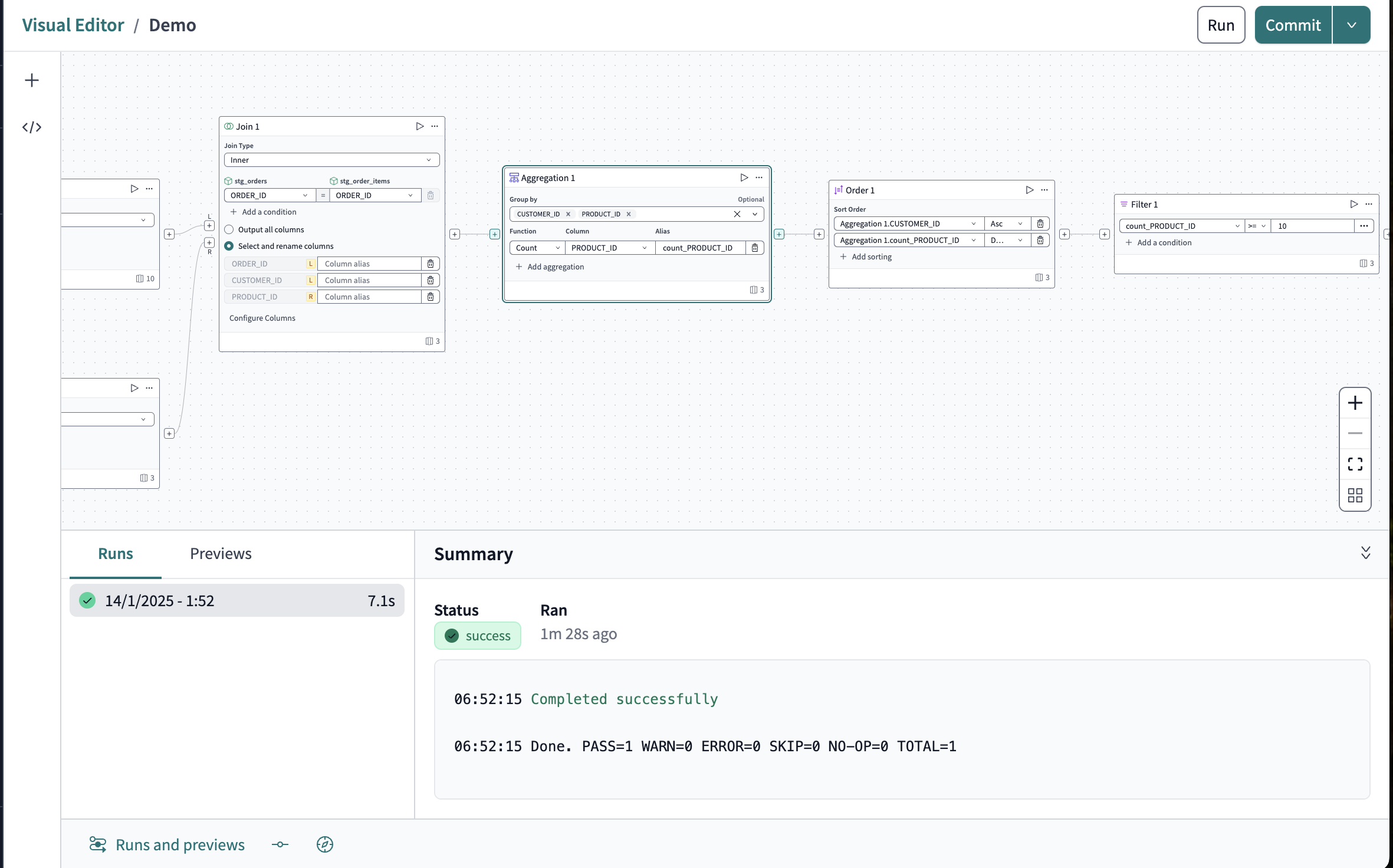

    The results of a successful run in the 'Runs and previews' pane.The results of a successful run in the 'Runs and previews' pane.

    This will materialize the data as a view in your developer schema in the database. Once the model has been merged with your project and dbt run is executed in your Staging or Production environments, it will be materialized as a view in their related schemas.

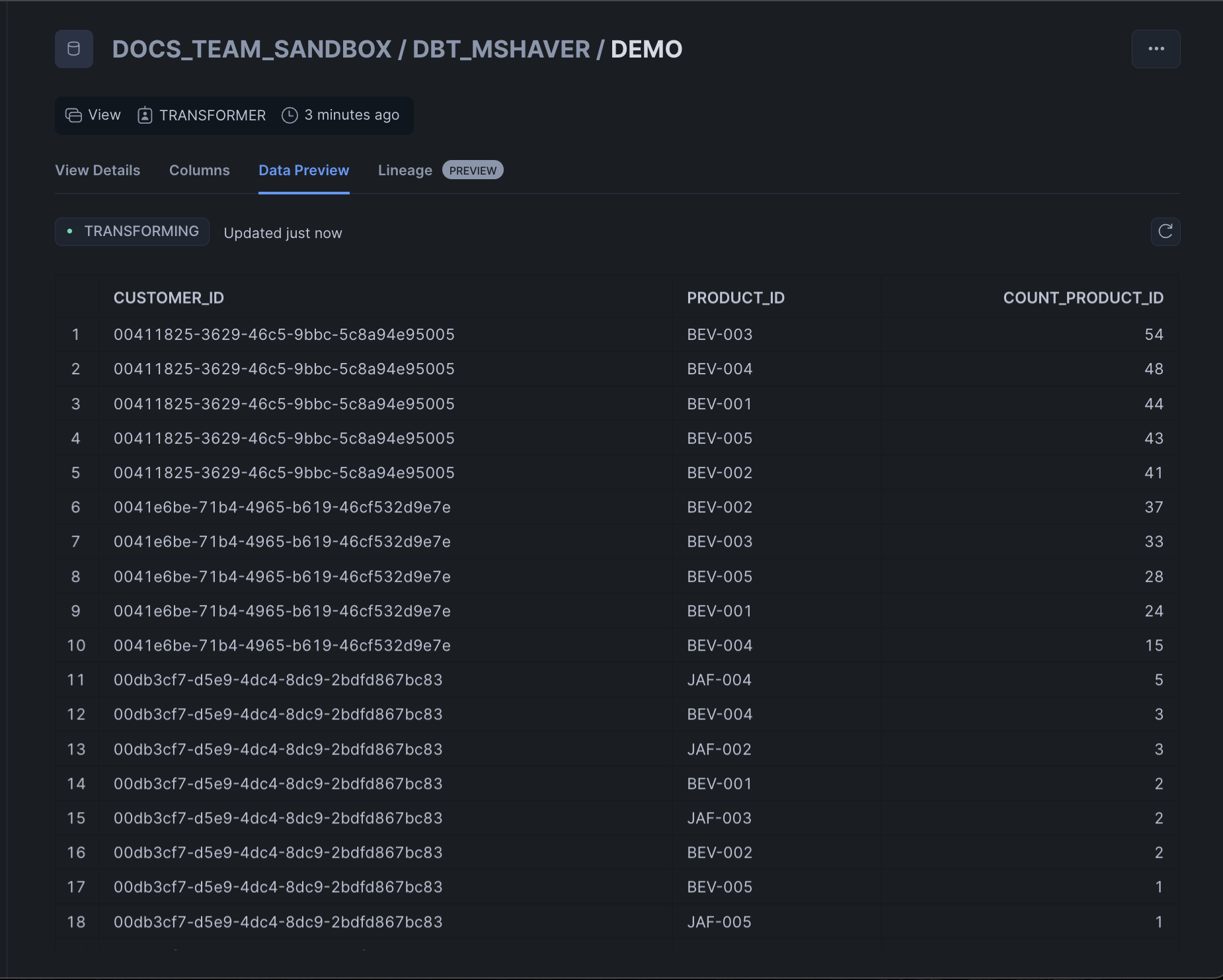

    Preview of the transformed data in Snowflake.Preview of the transformed data in Snowflake.

    Git commit​

    The models built in the Visual Editor are a part of your larger dbt project. They are stored in the visual_editor folder of your /models directory. This is all done automatically, you don't have to configure any paths or directories.

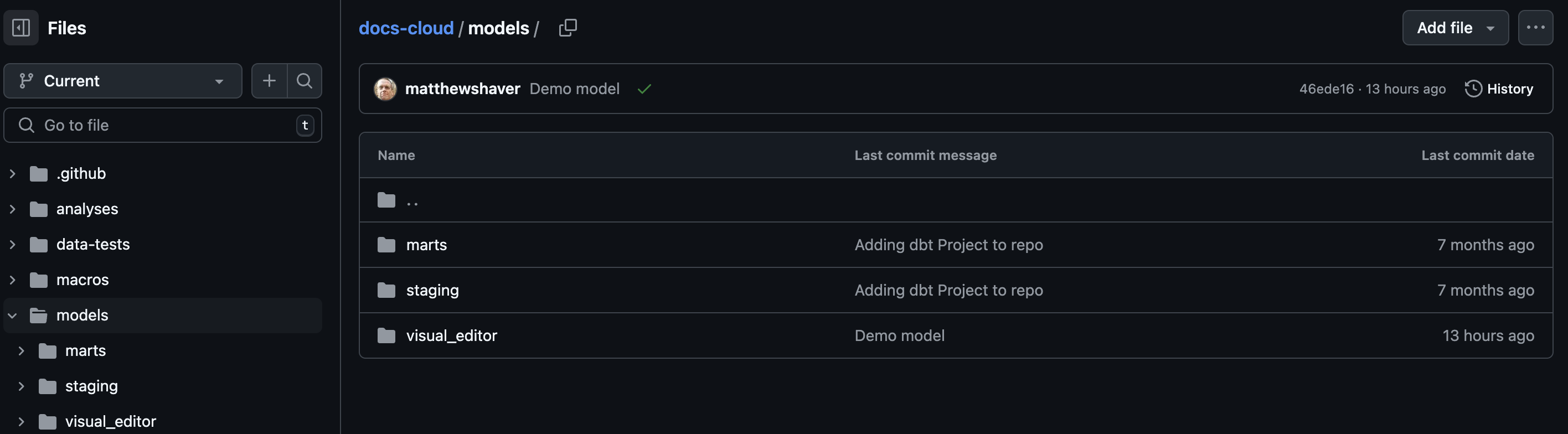

    Example of the Visual Editors model path in GitHub.Example of the Visual Editors model path in GitHub.

    However, it won't be created in your Git repo until you commit your first model. So, back in the model's view:

    1. Click Commit in the top right.
      • If you've already created a commit and wish to make more, click the arrow next to Create a pull request to see the Commit option.
    2. Fill out the Description field with information about your model. If it's long, the pull request will be created with part of it in the title and the rest of it in the body. That's ok! You can correct it during the PR creation process.
    3. Click Commmit.
    4. The Commit button will change to Create a pull request. You can add more commits, but for now click the Create a pull request button and you will be redirected to your Git provider in a new tab.

    The following examples use GitHub as the provider:

    Example of the screen you're taken to in GitHub when you create a pull request from the Visual Editor.Example of the screen you're taken to in GitHub when you create a pull request from the Visual Editor.
    1. Click Create pull request in the GitHub window.
    2. Fill out the Add a title and Add a description fields. If your description is split between both, copy the entire contents to the description field and give it a shorter title.
    3. Click Create pull request.

    You've just submitted your first model from the Visual Editor for review. Once approved and merged, the model will be included in your organizations project and run whenever dbt run is executed in any environments it is in. You're now on your way to becoming an expert in data transformation!
